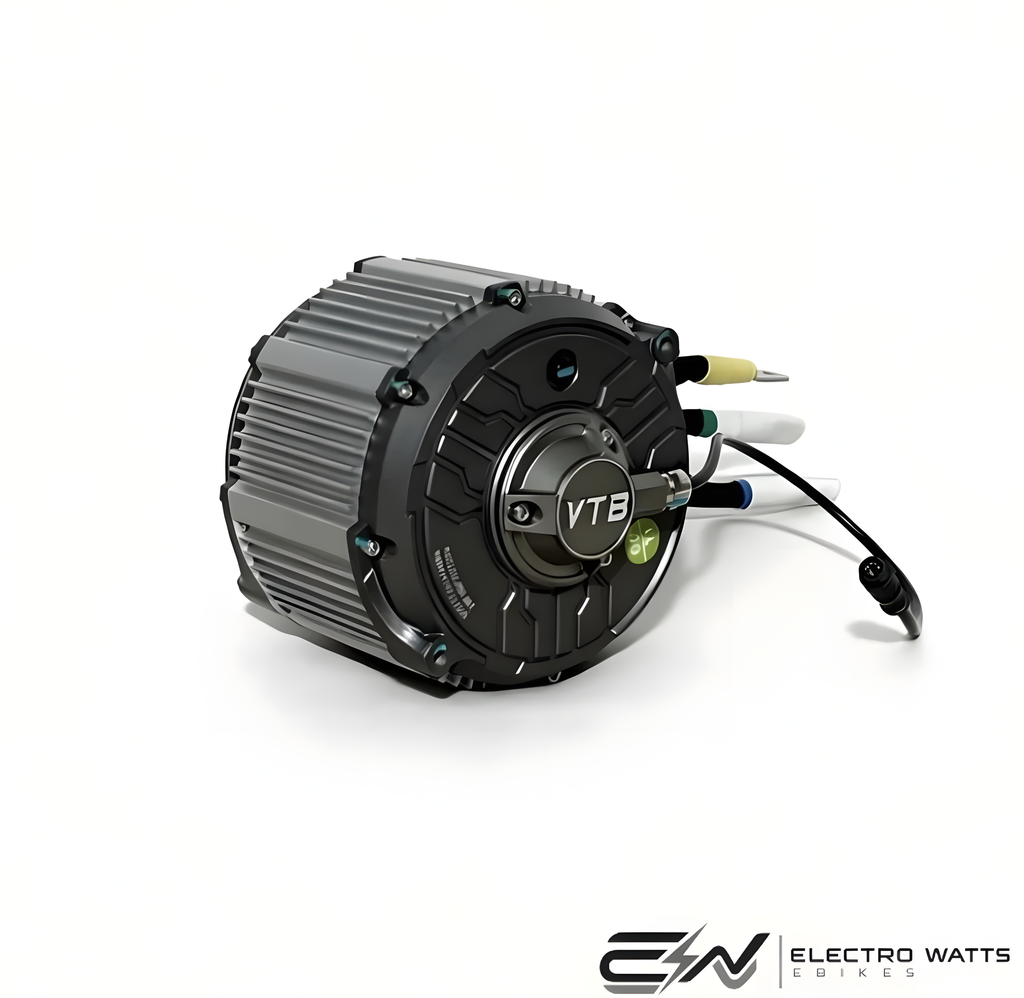

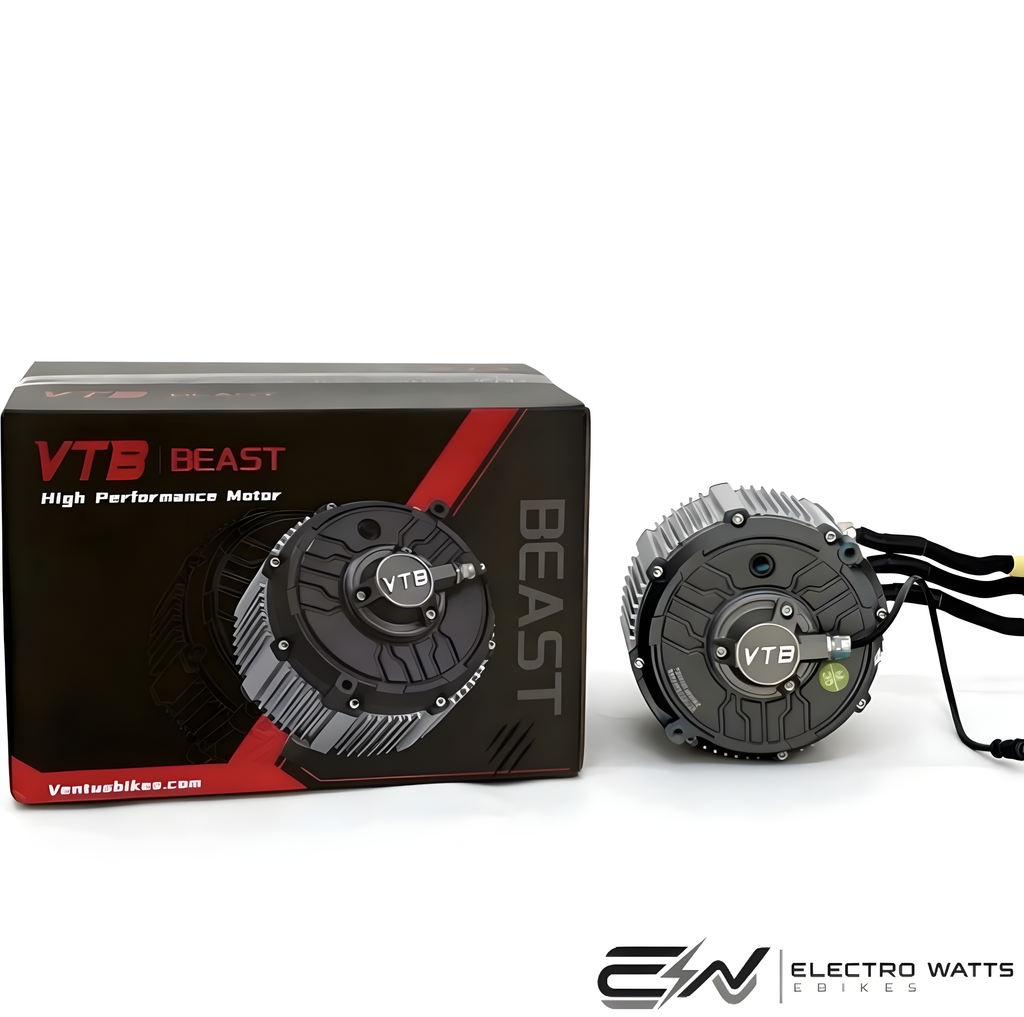

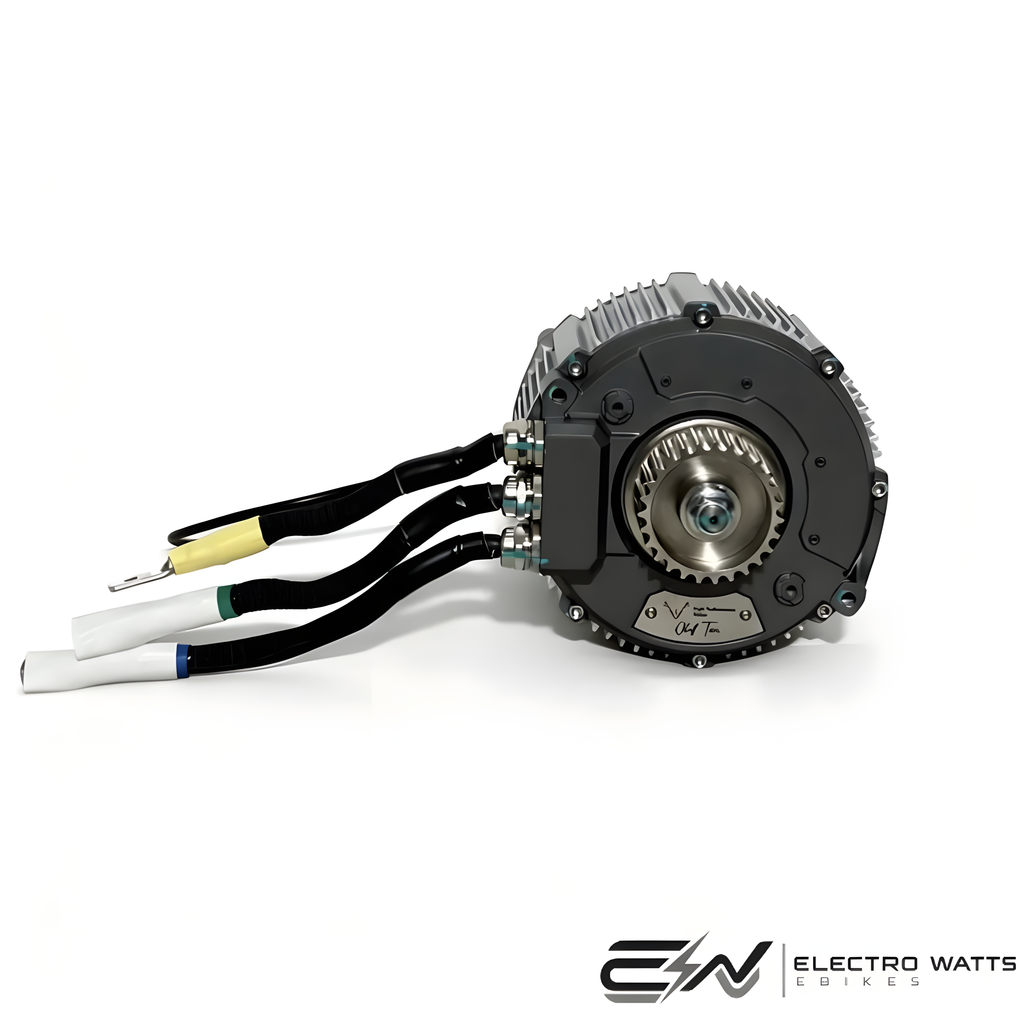

VTB Beast 48 kW Motor for Surron Ultra Bee
Take your Surron Ultra Bee to the next level with the VTB Beast Motor, a high-performance direct drop-in replacement designed to deliver exceptional power, torque and control.
When paired with the VTB V9600 Controller, the VTB Beast Motor is capable of producing up to 48 kW of peak power, transforming the Ultra Bee into a seriously powerful electric machine.
Designed with performance-focused components, advanced encoder technology and a high-efficiency internal permanent magnet (IPM) rotor, the VTB Beast is engineered for riders who demand fast response, precise control and dependable performance.
Direct Drop-In Replacement
The VTB Beast Motor is designed as a direct replacement for the Surron Ultra Bee motor, making it an ideal choice for high-performance builds and upgrades.
With a maximum torque output of 68 Nm and a maximum stable rotor speed of 9,500 RPM, the Beast is built to deliver strong acceleration and high-speed motor performance.
48 kW Peak Power
Paired with the VTB V9600 Controller, the Beast Motor can deliver up to 48 kW of peak power.
Its operating voltage range of 48–100 V and maximum phase current of 1,100 A provide the electrical capability required for an extreme-performance setup.
Advanced Encoder Technology
The VTB Beast uses an ABZ + PWM encoder with 1,024 pulses and a 240 Hz output frequency.
Compared with traditional Hall sensors, an encoder provides more detailed rotor-position feedback, helping deliver improved throttle response, smoother control and more precise motor management.
This is particularly beneficial for riders who demand precise control during aggressive riding, technical terrain and wheelie-focused setups.
IP67 Waterproof Motor Design
The Beast Motor features an IP67-rated design, providing a high level of protection against dust and water ingress.
VTB has developed a circular Nylon M12 connector using an in-mold decoration (IMD) technique to improve connector protection and compatibility with the V9600 controller.
The motor can also be supplied with an 8-pin square sensor connector when purchased separately for greater controller compatibility. However, the circular connector configuration provides the preferred waterproofing solution when used with compatible VTB components.
High-Performance IPM Rotor
The VTB Beast uses an Internal Permanent Magnet (IPM) rotor, a motor architecture widely used in high-performance electric vehicles.
The IPM design helps increase power density while maintaining high efficiency, making it well suited to demanding electric motorcycle applications.
The motor features a 0.5 mm rotor air gap, designed to support strong torque output.
Premium Motor Construction
The Beast has been engineered with high-quality internal components designed to withstand the demands of high-performance electric motorcycle use.
40CrMoTi high-strength steel alloy shaft provides increased strength and durability.
Sealed high-standard bearings are used for smooth operation, shock absorption and long-term durability.
High-magnetic-force stator laminations help reduce eddy-current losses and improve motor efficiency.
The stator windings use VPI (Vacuum Pressure Impregnation) technology to provide insulation and protection to the windings.
Intelligent Temperature Protection
The VTB Beast incorporates temperature protection to help safeguard the motor during high-load operation.
- 130°C: Power limiting begins
- 150°C: Power cut-off activates
This temperature management system is designed to help protect the motor from excessive heat during demanding riding conditions.
Key Specifications
Specification
VTB Beast Motor
Application
Surron Ultra Bee
Motor Type
Internal Permanent Magnet (IPM)
Peak Power
Up to 48 kW
Maximum Torque
68 Nm
Maximum Stable Rotor RPM
9,500 RPM
Maximum Efficiency
≥95%
Working Voltage
48–100 V
KV Rating
85 KV
Maximum Phase Current
1,100 A
Number of Pole Pairs
5
Rotor Air Gap
0.5 mm
Waterproof Rating
IP67
Stator Size
140 × 180 mm
Shaft Material
40CrMoTi Steel Alloy
Encoder
ABZ + PWM, 1,024 pulses
Encoder Output Frequency
240 Hz
Temperature Sensor
NTC 10K Thermistor
Phase Terminal
SC35-6
Sensor Connector
Nylon M12 / 8-pin square
Colour
Iron Gray
Weight
11.8 kg
Built for Serious Performance
The VTB Beast is more than a motor upgrade. Combined with the VTB V9600 Controller, it forms the foundation of an extreme-performance Surron Ultra Bee build.
With 48 kW peak power, up to 68 Nm of torque, 9,500 RPM capability, ≥95% maximum efficiency and advanced encoder feedback, the Beast is designed for riders looking for a significant increase in performance while retaining precise and responsive motor control.
VTB Beast — built for riders who want to push their Ultra Bee further.
Important: 48 kW is a peak system capability when correctly paired with the VTB V9600 Controller and an appropriate electrical system, battery and setup. Actual output will depend on the complete vehicle configuration, battery, controller settings, thermal conditions and other components. Always ensure your build complies with applicable laws and safety requirements.
